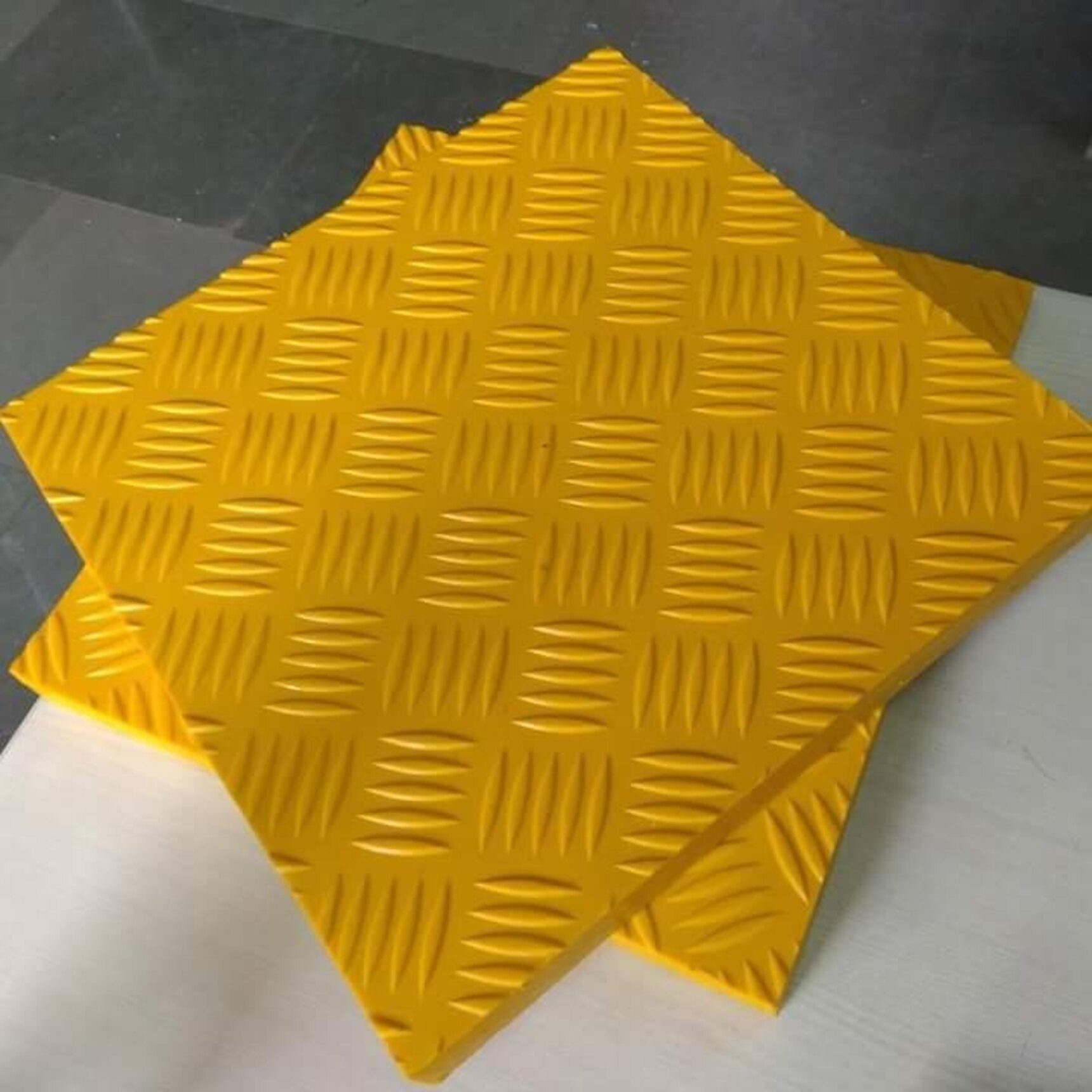

Chequered
Description
| Concentrated Line Load Table – Deflection in Millimeters | ||||||||||||||
| Span | Style | CONCENTRATED LINE LOAD(KN/M OF WIDTH) | MAXIMUM | ULTIMATE | ||||||||||
| (mm) | RECOMMENDED | CAPACITY | ||||||||||||
| LOAD | (KN/M OF WIDTH) | |||||||||||||
| Depth | Mesh | 1.5 | 2 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 85 | (KN/M OF WIDTH) | ||
| (mm) | (mm) | |||||||||||||
| 400 | 38 | 25×51 | <0.3 | 0.5 | 0.5 | 1.2 | 1.8 | 1.8 | 2.2 | 2.6 | 3 | 4.1 | 157 | 471 |
| 51 | 25×51 | <0.3 | <0.3 | 0.3 | 0.6 | 0.8 | 1.1 | 1.3 | 1.6 | 1.8 | 2.2 | 178 | 536 | |
| 600 | 38 | 25×51 | <0.3 | 0.8 | 1.5 | 2.9 | 4.3 | 5.7 | 7.1 | 8.5 | 10 | – | 101 | 303 |
| 51 | 25×51 | <0.3 | 0.4 | 0.7 | 1.5 | 2.3 | 3.1 | 3.9 | 4.7 | 5.5 | 6.7 | 130 | 393 | |
| 800 | 38 | 25×51 | 0.5 | 1.7 | 3.4 | 6.7 | 10.1 | – | – | – | – | – | 75 | 227 |
| 51 | 25×51 | 0.3 | 1 | 1.9 | 3.7 | 5.6 | 7.5 | 9.3 | 11.2 | – | – | 102 | 308 | |
| 1000 | 38 | 25×51 | 1 | 3.2 | 6.3 | 12.5 | – | – | – | – | – | – | 60 | 181 |
| 51 | 25×51 | 0.6 | 1.9 | 3.6 | 7.2 | 10.9 | – | – | – | – | – | 77 | 233 | |
