T-Bar PT-1018

Description

Full Size:1524*6096
Approx.Weight:11.68kg/Sm

Engineering Properties per 305mm of Width	# Of Bars	Load Bar Width	Bar Centers	Opening
A=18.5cm² I=15.4cm⁴ St=16.4cm³ Sb=9.57cm³	12	25.4 mm	50.8 mm	18%

Product Gallery

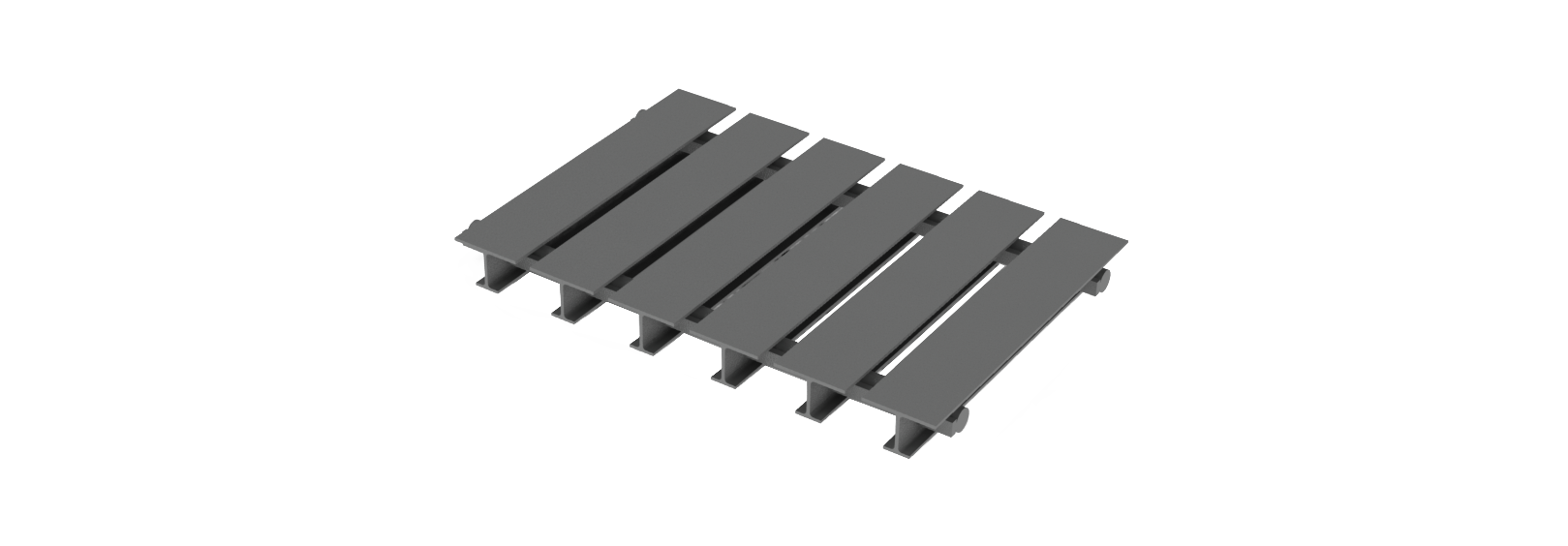

T-Bar PT-1018

T-Bar PT-1018 - Image 2
