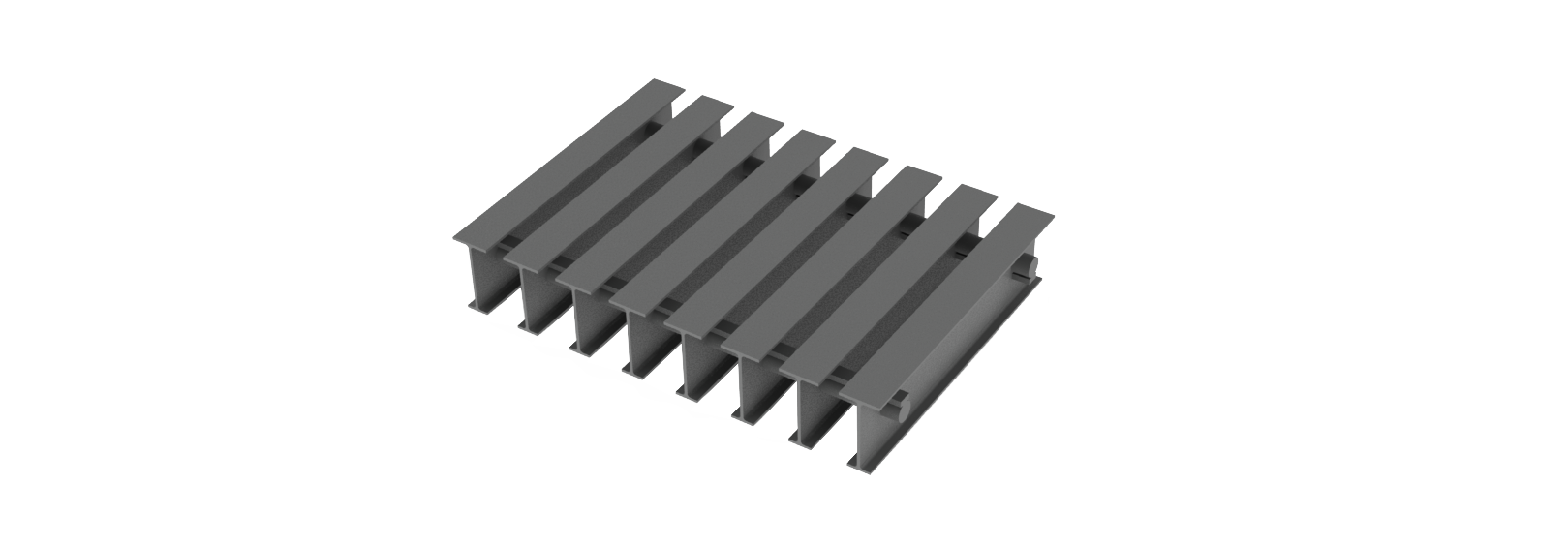

T-Bar PT-2050
Description
Full Size:1524*6096
Approx.Weight:16.76kg/Sm

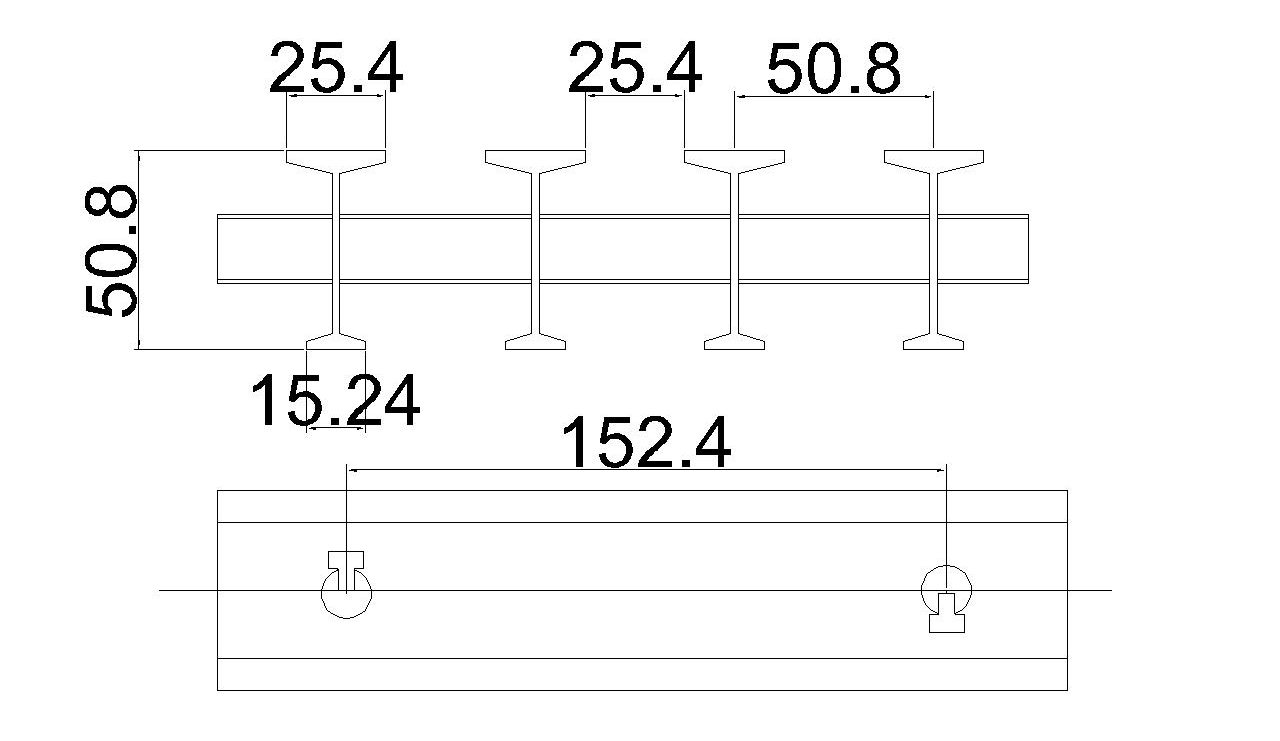

| Engineering Properties per 305mm of Width | # Of Bars | Load Bar Width | Bar Centers | Opening |
| A=20.8cm² I=65.8cm⁴ St=32.4cm³ Sb=21.6cm³ | 6 | 50.8 mm | 50.8 mm | 50% |
